Benchmark¶
Evaluate Datus Agent's performance and capabilities using industry-standard benchmarks. Run comprehensive tests against datasets like BIRD and Spider 2.0-Snow to assess accuracy, execution success rate, and query generation quality.
Overview¶
Datus Agent benchmark mode enables you to:
- Measure Accuracy: Evaluate how well the agent generates correct SQL from natural language
- Track Success Rates: Monitor query execution success across different database types
- Compare Results: Validate generated queries against expected outputs
- Identify Improvements: Discover areas for optimization and refinement
Quick Start¶
Get started quickly with the built-in benchmark datasets.
Step 1: Install Datus Agent¶
Tip
See the Quick Start Guide for detailed installation and setup instructions.
Step 2: Configure Environment¶
Set the required environment variables for your benchmark:
Step 3: Download and Prepare the BIRD Dataset¶
Note
This step is only required for the BIRD benchmark. If you are running Spider 2.0-Snow, skip to Step 4.
Download and extract the BIRD dev dataset into the Datus home directory (~/.datus by default):
cd ~/.datus
wget https://bird-bench.oss-cn-beijing.aliyuncs.com/dev.zip
unzip dev.zip
mkdir -p benchmark/bird
mv dev_20240627 benchmark/bird
cd benchmark/bird/dev_20240627
unzip dev_databases
cd ~
After extraction, the directory structure should look like:
~/.datus/
└── benchmark/
└── bird/
└── dev_20240627/
├── dev_databases/
│ ├── california_schools/
│ │ └── california_schools.sqlite
│ ├── ...
│ └── <other_databases>/
└── ...
Then bootstrap the knowledge base for the BIRD dataset:
Step 4: Run Benchmark Tests¶
Warning
Each task may take several minutes to complete. Running all tasks may require hours or days depending on your system configuration.
BIRD Dataset
Info
Task ID range: 0-1533
Spider 2.0-Snow Dataset
Info
You can find the task ID (instance ID) in the spider2-snow.jsonl file.
Note
Ensure you have configured the Snowflake environment variables before running Spider 2.0-Snow benchmarks.
Step 5: Evaluate Results¶
Run Evaluation¶
datus-agent eval \
--namespace snowflake \
--benchmark spider2 \
--output_file evaluation.json \
--task_ids <task_id1> <task_id2>
datus-agent eval \
--namespace snowflake \
--output_file evaluation.json \
--benchmark spider2
Evaluation Results¶
────────────────────────────────────────────────────────────────────────────────
Datus Evaluation Summary (Total: 30 Queries)
────────────────────────────────────────────────────────────────────────────────
✅ Passed: 19 (63%)
⚠️ No SQL / Empty Result: 0 (0%)
❌ Failed: 11 (37%)
• Table Mismatch: 4 (13%)
• Table Matched (Result Mismatch): 7 (23%)
- Row Count Mismatch: 1 (3%)
- Column Value Mismatch: 6 (20%)
────────────────────────────────────────────────────────────────────────────────
Passed Queries: 12, 40, 63, 80, 209, 279, 340, 436, 738, 774, 778, 853, 864, 1013, 1069, 1177, 1329, 1439, 1488
No SQL / Empty Result Queries: None
Failed (Table Mismatch): 263, 388, 484, 584
Failed (Row Count Mismatch): 455
Failed (Column Value Mismatch): 76, 131, 617, 642, 1011, 1205
────────────────────────────────────────────────────────────────────────────────
{
"status": "success",
"generated_time": "2025-11-07T15:56:40.050678",
"summary": {
"total_files": 1,
"total_output_nodes": 1,
"total_output_success": 1,
"total_output_failure": 0,
"success_rate": 100.0,
"comparison_summary": {
"total_comparisons": 1,
"match_count": 1,
"mismatch_count": 0,
"comparison_error_count": 0,
"empty_result_count": 0,
"match_rate": 100.0
}
},
"task_ids": {
"failed_task_ids": "",
"matched_task_ids": "0",
"mismatched_task_ids": "",
"empty_result_task_ids": ""
},
"details": {
"0": {
"total_node_count": 4,
"output_node_count": 1,
"output_success_count": 1,
"output_failure_count": 0,
"errors": [],
"node_types": {
"start": 1,
"chat": 1,
"execute_sql": 1,
"output": 1
},
"tool_calls": {
"list_tables": 1,
"describe_table": 2,
"search_files": 1,
"read_query": 3
},
"completion_time": 1762173198.4857101,
"status": "completed",
"comparison_results": [
{
"task_id": "0",
"actual_file_exists": true,
"gold_file_exists": true,
"actual_path": "<USER_HOME>/.datus/save/bird_school/0.csv",
"gold_path": "<USER_HOME>/.datus/benchmark/california_schools/california_schools.csv",
"comparison": {
"match_rate": 1.0,
"matched_columns": [
[
"eligible_free_rate",
"`Free Meal Count (K-12)` / `Enrollment (K-12)`"
]
],
"missing_columns": [],
"extra_columns": [
"School Name",
"District Name",
"Academic Year"
],
"actual_shape": [1, 4],
"expected_shape": [1, 1],
"actual_preview": "School Name | District Name | eligible_free_rate | Academic Year\n ----------------------------------------------------------------\n Oakland Community Day Middle | Oakland Unified | 1.0 | 2014-2015",
"expected_preview": "`Free Meal Count (K-12)` / `Enrollment (K-12)`\n ----------------------------------------------\n 1.0",
"actual_tables": ["frpm"],
"expected_tables": ["frpm"],
"matched_tables": ["frpm"],
"actual_sql_error": null,
"sql_error": null,
"actual_sql": "SELECT \n \"School Name\",\n \"District Name\", \n \"Percent (%) Eligible Free (K-12)\" as eligible_free_rate,\n \"Academic Year\"\nFROM frpm \nWHERE \"County Name\" = 'Alameda'\n AND \"Percent (%) Eligible Free (K-12)\" IS NOT NULL\nORDER BY \"Percent (%) Eligible Free (K-12)\" DESC\nLIMIT 1;",
"gold_sql": "SELECT `Free Meal Count (K-12)` / `Enrollment (K-12)` FROM frpm WHERE `County Name` = 'Alameda' ORDER BY (CAST(`Free Meal Count (K-12)` AS REAL) / `Enrollment (K-12)`) DESC LIMIT 1",
"tools_comparison": {
"expected_file": {"expected": "", "actual": [], "matched_actual": [], "match": true},
"expected_sql": {"expected": "", "actual": [], "matched_actual": [], "match": true},
"expected_semantic_model": {"expected": "", "actual": [], "matched_actual": [], "match": true},
"expected_metrics": {
"expected": ["Eligible free rate for K-12"],
"actual": [],
"matched_expected": [],
"matched_actual": [],
"missing_expected": ["Eligible free rate for K-12"],
"match": false
}
},
"error": null
}
}
]
}
}
}
Key fields under details:
- comparison_results: Comparison results for each task
- actual_sql: SQL generated by Datus Agent
- actual_path: Executed result produced by Datus Agent
- gold_sql: Reference (gold) SQL
- gold_path: Reference (gold) result path
- comparison: Side-by-side comparison results
- match_rate: Matching ratio
- matched_columns: Columns that match
- missing_columns: Columns missing compared to reference
- extra_columns: Extra columns not present in the reference
- actual_tables: Tables used by the generated result
- expected_tables: Tables used by the reference answer
- matched_tables: Intersected tables
- tool_calls: Count of each tool invocation

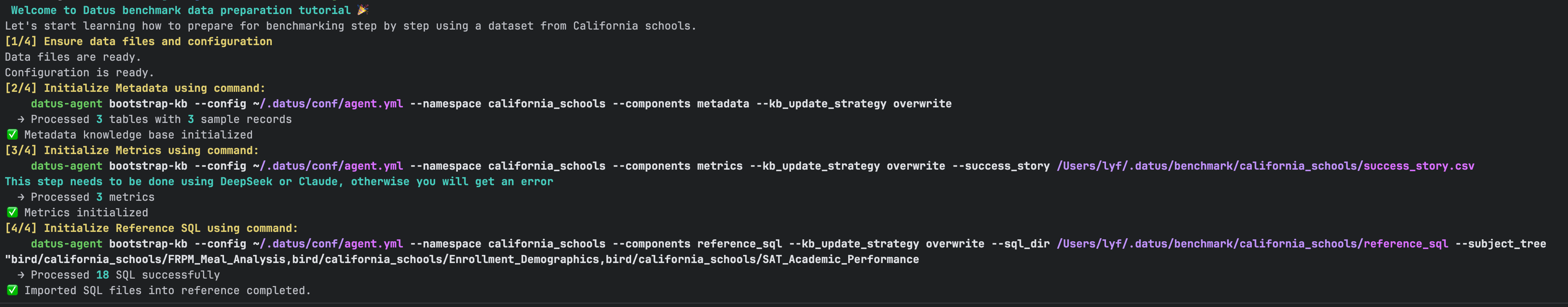

Built-in Dataset Quick Trial¶
Try out benchmarking and evaluation with the pre-packaged California Schools dataset — no extra downloads needed.
Step 1: Initialize the Dataset¶
This step does the following:
- Add database configuration and benchmark configuration for California Schools to agent.yml
- Initialize the metadata information of the tables for California Schools
- Use
benchmark/california_schools/success_story.csvto build metric information - Build reference SQL using the SQL files in
benchmark/california_schools/reference_sql
Benchmarking and evaluation¶
datus-agent benchmark --namespace california_schools --benchmark california_schools --benchmark_task_ids 0 1 2 --workflow <your workflow>
Custom Benchmark¶
Add Benchmark Configuration¶
agent:
namespace:
california_schools:
type: sqlite
name: california_schools
uri: sqlite:///benchmark/bird/dev_20240627/dev_databases/california_schools/california_schools.sqlite # Database file path. Use sqlite:/// for relative paths; sqlite://// for absolute paths.
benchmark:
california_schools: # Benchmark name
question_file: california_schools.csv # File containing benchmark questions
question_id_key: task_id # Field name for question ID
question_key: question # Field name for question text
ext_knowledge_key: expected_knowledge # Field name for external knowledge or additional context
# Configuration for evaluation phase
gold_sql_path: california_schools.csv # File path for reference (gold) SQL
gold_sql_key: gold_sql # Field name for reference SQL
gold_result_path: california_schools.csv # File path for reference (gold) results
gold_result_key: "" # Field name for results when using a single file
📖 Benchmark Configuration Field Description
| Field | Description |
|---|---|
| question_file | Path to the question file, supporting .csv, .json, and .jsonl formats. The path is relative to {agent.home}/benchmark/{benchmark_name}. |
| question_id_key | Unique identifier field name for each benchmark question. |
| question_key | Field name for the natural language question. |
| ext_knowledge_key | Field name for additional knowledge or problem description. |
| gold_sql_path | Standard SQL file path, supporting two scenarios: 1. A single file, e.g., BIRD_DEV; supporting .csv, .json, and .jsonl formats. 2. A separate SQL file for each task (e.g., spider2). |
| gold_sql_key | When gold_sql_path is a single file, this specifies the field name containing the reference SQL. |
| gold_result_path | Standard result file path, with each result being a string in CSV format. Three scenarios are supported: 1. A single file in .csv, .json, or .jsonl format;2. A separate CSV file for each task (e.g., spider2); 3. If not configured, the system will execute standard SQL to retrieve results. |
| gold_result_key | Standard result field. When gold_result_path is a single file, this field is meaningful and must be configured. |
Build Knowledge Base¶
Construct the metadata, metrics, and reference SQL knowledge bases according to your dataset.
👉 See knowledge_base/introduction for details.
Run Benchmark¶
👉 See Step 4: Run Benchmark Tests
Evaluate Results¶
👉 See Step 5: Evaluate Results
Multi-round Benchmark and Evaluation¶
Execute repeated benchmark + evaluation cycles (as described in Step 4 and Step 5) and compare the outcomes across rounds. This is useful for measuring the stability and consistency of agent performance.
Usage¶
Options¶
| Option | Required | Default | Description |
|---|---|---|---|
--namespace |
Yes | — | Namespace to benchmark, e.g. bird_sqlite |
--benchmark |
Yes | — | Benchmark name, e.g. bird_dev |
--workflow |
No | reflection |
Workflow plan to execute |
--round |
No | 4 |
Number of benchmark iterations to run |
--max_steps |
No | 30 |
Maximum steps per workflow execution |
--workers |
No | 1 |
Number of parallel workers for task execution |
--task_ids |
No | all tasks | Explicit task IDs to benchmark (space or comma separated) |
--group_name |
No | workflow name | Name of the integration test group, used for output directory naming |
--delete_history |
No | false |
Delete existing round output directory before each round starts |
--summary_report_file |
No | — | Path to summary report file. Reports will be appended for each round |
--debug |
No | false |
Enable debug level logging |
--config |
No | ~/.datus/conf/agent.yml or conf/agent.yml |
Path to agent config file |
Note:
--round,--max_steps,--workers,--task_ids,--group_name,--delete_history, and--summary_report_filealso accept kebab-case (e.g.--max-steps) and legacy names (e.g.--max_round,--max_workers) for backward compatibility.
Output Structure¶
{timestamp} is the time when the multi-round benchmark starts, formatted as YYYYMMDD_HHmm (e.g. 20260129_1530). {ts} is a Unix epoch timestamp in seconds (e.g. 1769611836).
For each round the tool creates an isolated output directory under {agent.home}/integration/. After all rounds finish, a summary Excel file is also exported:
{agent.home}/integration/
├── {group_name}_0/
│ ├── save/{namespace}/{timestamp}/
│ │ ├── 0.json # Task metadata
│ │ ├── 0.sql # Generated SQL
│ │ ├── 0.csv # Query execution result
│ │ ├── 1.json
│ │ ├── 1.sql
│ │ ├── 1.csv
│ │ └── ...
│ ├── trajectory/{namespace}/{timestamp}/
│ │ ├── 0_{ts}.yaml # Workflow trace (e.g. 0_1769611836.yaml)
│ │ ├── 1_{ts}.yaml
│ │ └── ...
│ └── evaluation_round_{timestamp}_0.json # Evaluation report for round 0
├── {group_name}_1/
│ ├── save/{namespace}/{timestamp}/
│ │ ├── 0.json
│ │ ├── 0.sql
│ │ ├── 0.csv
│ │ ├── 1.json
│ │ ├── 1.sql
│ │ ├── 1.csv
│ │ └── ...
│ ├── trajectory/{namespace}/{timestamp}/
│ │ ├── 0_{ts}.yaml
│ │ ├── 1_{ts}.yaml
│ │ └── ...
│ └── evaluation_round_{timestamp}_1.json
├── ...
└── {group_name}_summary_{timestamp}.xlsx # Summary report across all rounds
The summary Excel file contains a cross-round comparison table:
| task_id | round_0 | round_1 | ... | Matching Rate |
|---|---|---|---|---|
| 0 | Matched | Result Mismatch | ... | 50.00% |
| 1 | Column Mismatch | Matched | ... | 50.00% |
| Summary of Matching Rate | 50.00% | 50.00% | ... | 50.00% |
| Round Duration | 5m 30s | 5m 12s | ... |
Task Status Definitions¶
Each task in each round is classified into one of the following statuses, listed from highest to lowest evaluation priority (the first matching status is assigned):
| Status | Description |
|---|---|
Not Executed |
Benchmark or evaluation encountered an anomaly; the task was not processed |
Matched |
Generated SQL results match the gold standard answers |
Gen SQL Failed |
The SQL generated by the agent fails to execute in the database |
Gold SQL Failed |
Gold SQL execution failed — check configuration or gold SQL correctness |
Match Failed |
Evaluation result was not obtained, possibly due to an uncaught exception |
Table Mismatch |
The tables located by the agent are inaccurate (incorrect or missing) |
Result Mismatch |
Tables matched, but row or column values differ from the expected output |
Column Mismatch |
Tables and rows matched, but some columns differ or are missing |
